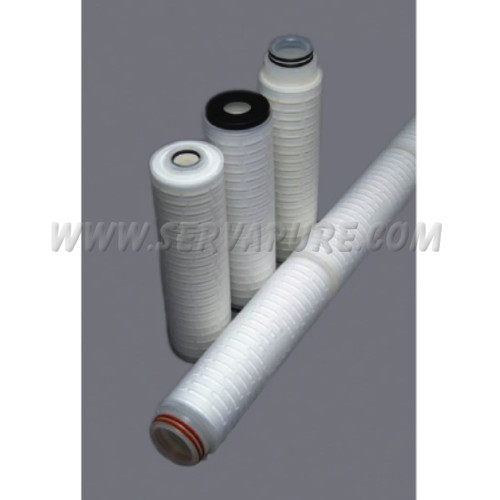

Polypropylene Depth Cartridge, 0.10 Micron Rating, GPD-10, General Grade
Polypropylene Depth Cartridge, 0.10 Micron Rating, GPD-10, General Grade
Write a Review

Polypropylene Depth Cartridge, 0.10 Micron Rating, GPD-10, General Grade

Part Number: GPD-10
Your Price: $121.42
Retail Price:$138.74
Your Savings:$17.32(12%)
Polypropylene Depth Cartridge, 0.10 Micron Rating, GPD-10, General Grade
Call for Stock Level
Feature: 2055

Choose Options

*
*
*
Polypropylene Depth Cartridge, 0.10 Micron Rating, GPD-10, General Grade

GPD grade Polypropylene cartridges are designed for general purpose use wherever a cost effective pleated depth filters is required. Rated at 99.9% efficiencies at the rated pore size and designed to hold the maximum amount of filter media that can be completely and effectively utilized in a cartridge. GPD cartridges are flushed with 17+ megohm-cm water to remove potential extraneous manufacturing debris. Priced below special purpose cartridges, GPD series are still manufactured with the same careful attention to both quality and performance.

Maximum Operating Parameters

• Micron Rating: 0.1 Micron
• Maximum Operating Temperature*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)

Construction Materials

• Filtration Media: Dual Layered Polypropylene
• Filtration Media Support: Polypropylene
• End Caps: Polypropylene
• Center Core: Polypropylene
• Outer Support Cage: Polypropylene
• Sealing Method: Thermal Bonding

Dimensions (Cylindrical)

• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
• Surface Area: 7.2 ft2 (0.67 m2) Per 10" length

Applications
Filtration of:

• Wine Clarification                    • Soft Drinks
• Beverage Clarification              • Bottled water
• Cosmetics                                 • Process Water
• Chemicals                                • Air & Gases
